380V Metal Tube Laser Cutting Machine , 60m/Min 2000W Laser Cutter

Brand Name : bcx

Model Number : bcx—005

Certification : ce

Place of Origin : China

MOQ : 1

Price : 1500US dollars

Payment Terms : T/T

Supply Ability : 99

Delivery Time : 8

Packaging Details : specialized shatterproof packing

Product name : Fiber Laser Metal Tube Cutting Machine

Model : bcx—005

Brand : bcx

Power : 1000w 2000w

Speed : 60M/min

Contact Now

1000w 2000w Fiber Laser Metal Tube Cutting Machine

This model integrates square tube, circular tube, oblate tube, and plane cutting in one, with multifunction and high practicality.

Gantry structure and dual drive, Germany imported rack & pinion drive system. Excellint cutting performance and stability.

Selt-centering jig system ensures stable process of conveying pipes, so that it can ensure high accuracy and high quality of products.

The machine, with high accuracy of machining dimension, can take the place of traditional processing equipment, such as sawing and punching.

Saddle-shaped pipe type support beam is with high precision calibration, no derformation during 6m pipe cutting.

PRODUCT ADVANTAGE

Fiber laser cutting machine with square tube, round tube, flat tube and plane cutting, multi-functional, practical

Gantry double drive, imported from Germany, rack and pinion transmission structure, excellent cutting performance and stability

Accurate machining size, can replace many traditional processing equipment such as sawing, punching, etc.

Model
3015/ 4020/6020/6015/2513
Working area
3000*1500mm
Miximum length of pipe(Options)
3000mm(or)6000mm
Limits of pipe(Customized)
Round tube:Φ20mm~Φ120mm;
Square tube :Φ20mm~80mm;
Circular tube: Φ20mm~Φ120mm;Square tube: Φ20mm~80mm
Laser type
Fiber laser generator
Laser power(optional)
500~2000W
Transmission system
Double serve motor &gantry&rack&pinion
Maximum speed
±0.03mm/1000mm
Pipe cutting system(optional)
yes
Maximum speed
60m/min
Maximum accelerated speed
0.6G
Position accuracy
±0.15mm/1000mm
Reposition accuracy
±0.02mm/1000mm
Graphic format supported
CAD,DXF(etc)
Total power
10KW
Power supply
380V/50Hz/60Hz
Overall dimension(include cutting machine in 3 meters long)
4350mm×3200mm×1740mm
Overall dimension(include cutting machine in 6 meters long)
7650mm×3200mm×1740mm
Gross weight
6000kg

380V Metal Tube Laser Cutting Machine , 60m/Min 2000W Laser Cutter

Detailed Images

380V Metal Tube Laser Cutting Machine , 60m/Min 2000W Laser Cutter

APPLICATION&SAMPLE

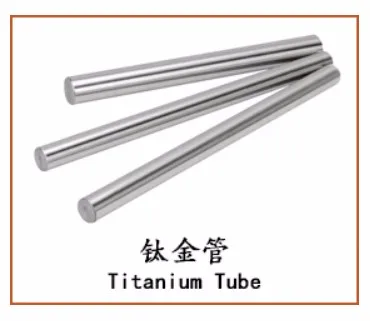

Pipe steel plate cutting and cutting; pipe length 3000mm, pipe diameter maximum outer diameter 150mm, other specifications need to be determined

380V Metal Tube Laser Cutting Machine , 60m/Min 2000W Laser Cutter
380V Metal Tube Laser Cutting Machine , 60m/Min 2000W Laser Cutter
380V Metal Tube Laser Cutting Machine , 60m/Min 2000W Laser Cutter
380V Metal Tube Laser Cutting Machine , 60m/Min 2000W Laser Cutter

380V Metal Tube Laser Cutting Machine , 60m/Min 2000W Laser Cutter
